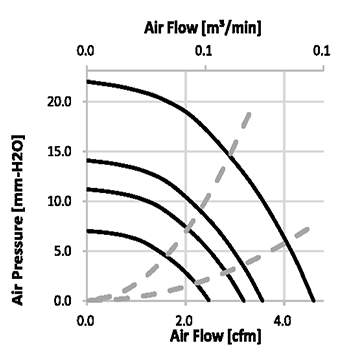

| 額定電壓 | 頻率 | 輸入功率 | 參考轉速 | 最大風量 | 最大風壓 | 噪音 | Model No | VAC | Range(V) | Current | RPM | CFM | m3/min | Inch/H2O | mm-H2O | db(A) | BGE05015_05L | 5 | 4.5~5.5 | 0.09 | 3500 | 2.48 | 0.07 | 0.28 | 7.00 | 27.0 | BGE05015_12L | 12 | 7.0~13.2 | 0.06 | 3500 | 2.48 | 0.07 | 0.28 | 7.00 | 27.0 | BGE05015_05M | 5 | 4.5~5.5 | 0.12 | 4500 | 3.18 | 0.09 | 0.44 | 11.20 | 32.5 | BGE05015_12M | 12 | 7.0~13.2 | 0.07 | 4500 | 3.18 | 0.09 | 0.44 | 11.20 | 32.5 | BGE05015_24M | 24 | 14.0~26.2 | 0.05 | 4500 | 3.18 | 0.09 | 0.44 | 11.20 | 32.5 | BGE05015_05H | 5 | 4.5~5.5 | 0.18 | 5500 | 3.56 | 0.10 | 0.56 | 14.10 | 37.2 | BGE05015_12H | 12 | 7.0~13.2 | 0.09 | 5500 | 3.56 | 0.10 | 0.56 | 14.10 | 37.2 | BGE05015_24H | 24 | 14.0~26.2 | 0.07 | 5500 | 3.56 | 0.10 | 0.56 | 14.10 | 37.2 | BGE05015_12U | 12 | 7.0~13.2 | 0.11 | 6500 | 4.60 | 0.13 | 0.87 | 22.00 | 45.3 | BGE05015_24U | 24 | 14.0~26.2 | 0.12 | 6500 | 4.60 | 0.13 | 0.87 | 22.00 | 45.3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|  |
** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing 100, 200, 240V or special voltages 12, 24, 28, 38, 42, 48, 380~440~480... 50/60Hz, & dual voltage version available on request. Dual speed High/Medium 1/2, High/Low 1/3, Medium/Low 2/3, Low/extra Low 3/4 or triple speed 1/2/3 available on request. CROWN reserves the right to change data and improve electrical or mechanical design without notice, data tolerance +-10%
|
|
