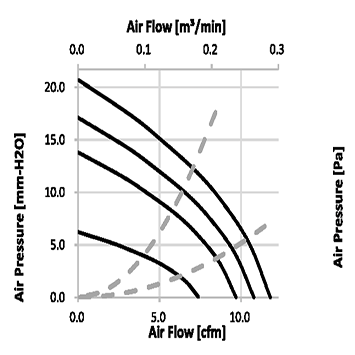

| 額定電壓 | 頻率 | 輸入功率 | 參考轉速 | 最大風量 | 最大風壓 | 噪音 | Model No | VAC | Range(V) | Current | RPM | CFM | m3/min | Inch/H2O | mm-H2O | db(A) | BGE07015_12M | 12 | 7.0~13.2 | 0.21 | 4000 | 7.40 | 0.21 | 0.24 | 6.20 | 43.0 | BGE07015_12H | 12 | 7.0~13.2 | 0.32 | 4500 | 9.70 | 0.27 | 0.54 | 13.80 | 47.0 | BGE07015_12U | 12 | 7.0~13.2 | 0.40 | 5000 | 10.80 | 0.31 | 0.67 | 17.10 | 49.0 | BGE07015_12V | 12 | 7.0~13.2 | 0.50 | 5500 | 11.80 | 0.33 | 0.81 | 20.70 | 51.0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|  |
** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing 100, 200, 240V or special voltages 12, 24, 28, 38, 42, 48, 380~440~480... 50/60Hz, & dual voltage version available on request. Dual speed High/Medium 1/2, High/Low 1/3, Medium/Low 2/3, Low/extra Low 3/4 or triple speed 1/2/3 available on request. CROWN reserves the right to change data and improve electrical or mechanical design without notice, data tolerance +-10%
|
|
