‧DC‧BGE12032

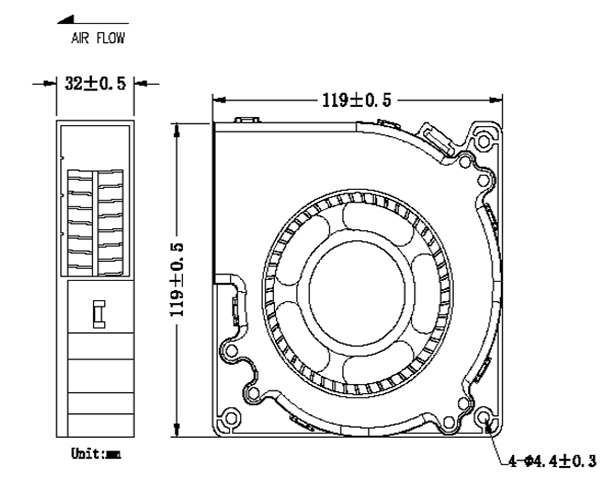

120x120x32mm

32.1 CFM

CROWN ELECTRONICS BLOWER FAN 12032

	額定電壓	頻率	輸入功率	參考轉速	最大風量		最大風壓		噪音
Model No	VAC	Range(V)	Current	RPM	CFM	m3/min	Inch/H2O	mm-H2O	db(A)
BGE12032_12J	12	7.0~13.2	0.45	2100	24.62	0.70	0.56	14.20	46.0
BGE12032_24J	24	14.0~26.2	0.24	2100	24.62	0.70	0.56	14.20	46.0
BGE12032_48J	48	28.0~56.0	0.12	2100	24.62	0.70	0.56	14.20	46.0
BGE12032_12L	12	7.0~13.2	0.63	2300	26.76	0.76	0.70	17.70	48.0
BGE12032_24L	24	14.0~26.2	0.30	2300	26.76	0.76	0.70	17.70	48.0
BGE12032_48L	48	28.0~56.0	0.15	2300	26.76	0.76	0.70	17.70	48.0
BGE12032_12M	12	7.0~13.2	0.85	2500	28.80	0.82	0.83	21.00	50.5
BGE12032_24M	24	14.0~26.2	0.36	2500	28.80	0.82	0.83	21.00	50.5
BGE12032_48M	48	28.0~56.0	0.18	2500	28.80	0.82	0.83	21.00	50.5
BGE12032_12H	12	7.0~13.2	1.10	2800	32.10	0.91	1.06	27.00	53.5
BGE12032_24H	24	14.0~26.2	0.50	2800	32.10	0.91	1.06	27.00	53.5
BGE12032_48H	48	28.0~56.0	0.25	2800	32.10	0.91	1.06	27.00	53.5
BGE12032_12U	12	7.0~13.2	#N/A	3600	49.00	1.39	2.72	69.00	60.0
BGE12032_24U	24	14.0~26.2	#N/A	3600	49.00	1.39	2.72	69.00	60.0
BGE12032_48U	48	28.0~56.0	#N/A	3600	49.00	1.39	2.72	69.00	60.0
BGE12032_12V	12	7.0~13.2	1.40	4000	54.00	1.53	3.46	88.00	62.0
BGE12032_24V	24	14.0~26.2	0.80	4000	54.00	1.53	1.06	26.80	62.0
BGE12032_48V	48	28.0~56.0	0.50	4000	54.00	1.53	1.06	26.80	62.0


** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing 100, 200, 240V or special voltages 12, 24, 28, 38, 42, 48, 380~440~480... 50/60Hz, & dual voltage version available on request. Dual speed High/Medium 1/2, High/Low 1/3, Medium/Low 2/3, Low/extra Low 3/4 or triple speed 1/2/3 available on request. CROWN reserves the right to change data and improve electrical or mechanical design without notice, data tolerance +-10%


	馬達類別：	DC Brushless Dc Motor

	IP 防護：


	外框(Frame)：	Plastic(94V-0)

	葉輪(Impeller)：	Plastic(94V-0)

	軸承(Bearing)：	Ball ; Sleeve Bearing

	重量(weight)：	0.23KG
